Multifunctional Hydraulic Stone Grapple Rotating Demolition Excavator Sorting Grab

Name: Multifunctional Hydraulic Stone Grapple Rotating Demolition Excavator Sorting Grab
Brand: DOPRO
Price: 90 USD

Quality Multifunctional Hydraulic Stone Grapple Rotating Demolition Excavator Sorting Grab for sale

Brand Name : DOPRO

Model Number : DPBG300

Certification : ISO CE

Place of Origin : CHINA

MOQ : 1

Price : 90-900

Supply Ability : 3000 Pcs Per Month

Delivery Time : 3-7Working Days

Packaging Details : Export Wooden Cases /Pallet

Color : Customer Required,Customer's Request,any color

Warranty : 6 Months-12months

Type : Excavator Spare Parts,Agro-Forestry Monitoring System

Application : Excavator,stones,gravels

Material : Q345B/NM360/HARDOX500,Q460 +NM360

After-sales service provided : Video technical support,Online support

Condition : New

Usage : load or unload sand or something else,wood or rock grappling

Name : excavator Grapple bucket,rotating stone grapple

Packing : Wooden Pallet or Customized

Oem : Yes

Suitable excavator : All Brands' All Model

Part name : Grapple,Excavator Bucket

Origin : YANTAI,China

Contact Now

Multifunctional Hydraulic Stone Grapple Rotating Demolition Excavator Sorting Grab

Excavator grapple attachments

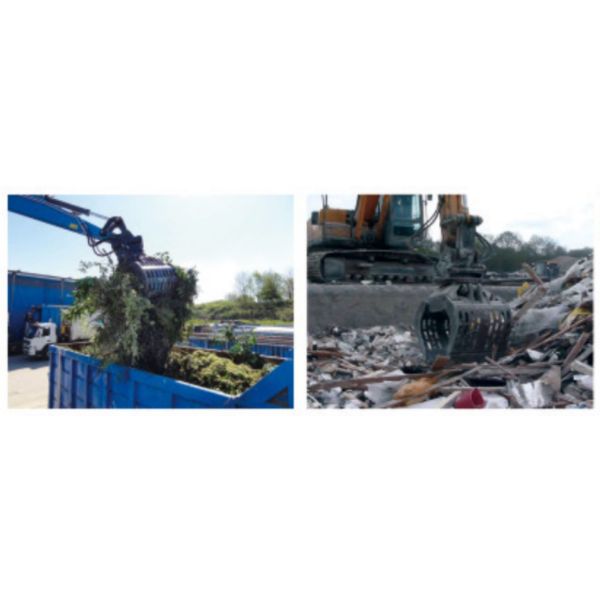

Demolition and sorting grabs are universal tools for demolition, sorting and loading all kinds of materials. The name Multi Grapple is quite a good description for them. The basic structure is quite simple and similar for all brands: a rigid main body with two moving jaws mounted on both ends of the frame. The jaws are powered by one or two hydraulic cylinders, and they are connected together with a steel bar so that they move simultaneously. For heavy applications these hydraulic grapples are always equipped with a powerful hydraulic rotator but for light loading and sorting jobs a tilt rotator can replace it.

Accessories for our rotating grapples

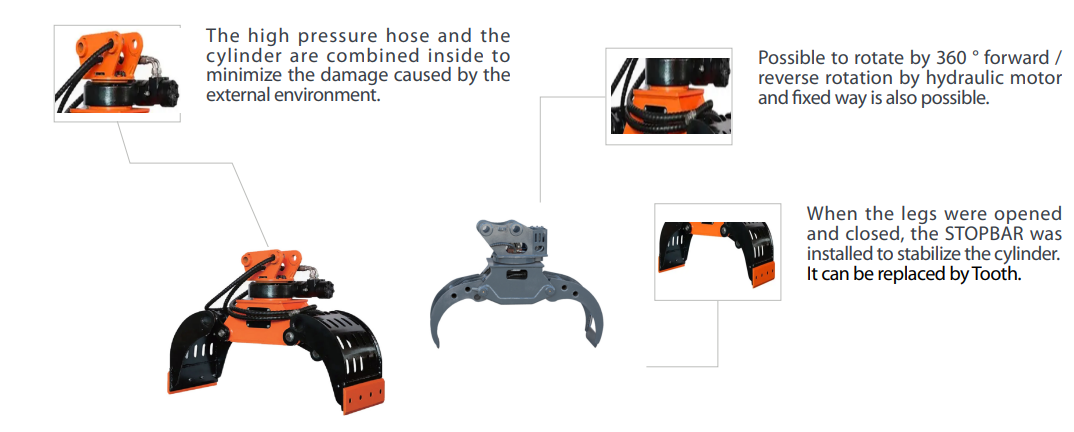

To make our hydraulic grapple attachments even more versatile, it can be equipped with various accessories for different jobs. Some of the most typical are steel plates to make it a clam shell bucket and teeth for rock handling.

Stone Steel grabber

Hydraulic Steel Grab

Applicable objects: simple soil loosening, debris cleaning, loading and unloading operations, etc

Product features

1. Using NM400 wear-resistant steel, lightweight and wear-resistant;

The pin shaft is made of 42CrMo alloy steel with an internal oil passage, which has high strength and good toughness;

The rotary motor adopts Swiss imported motors;

2.Using a vertical car motor rotation system with 360 ° rotation and brake function;

The oil cylinder adopts honing tube and imported HALLITE oil seal, which has a short working cycle and long service life;

3. The gripper teeth are made of manganese molybdenum alloy material, which is durable and long-lasting;

SPECIFICATION
MODEL	DPAS400	DPAS600	DPAS800	DPAS1000
WEIGHT(kg)	330	550	800	1370
MIN	652	707	818	883
MAX	1105	1300	1700	1923
H	415	460	665	905
H1	350	451	532	744
L	450	550	880	1030
TON	4~9	10~17	18~24	25~32

FAQ
1.What color can you produce ?
Yellow.If you need special, please advise.
2.How about the delivery time ?
Within 7-10 working days after receiving advance payment.
3.What's the MOQ and payment ?
MOQ is 1 set.
T/T, L/C, Credit card, Money Gram, west union is accepted. and other terms can also be negotiated.
4.Are you a manufacture?
Yes, our factory was established in 2012.
5.Can you produce according to customers' design?
Sure,we are professional manufacturer,OEM is available.
6.Which country have you exported?
America,Brazil,Mexico,Canada, Australia, Peru,Spain,Egypt,Pakistan, South Africa,etc.
7.How to buy my wanted products quickly?
Show me the model or the weight of your excavator, and we can give you best solution.
If you want to know the ocean freight,please also suggest your nearest sea port.
8.How about the package?
Plywood case, or as customers' demands.
9.How about your service?
7Days *24Hours hot line and email service.
Well-Retrained and experience staffs will answer all your questions within 12 hours.
